19.05 mm Pitch Series 3935 Flat top/Flush grid /Rubber Top/Perforated Modular Belt
  • 19.05 mm Pitch Series 3935 Flat top/Flush grid /Rubber Top/Perforated Modular Belt
  • 19.05 mm Pitch Series 3935 Flat top/Flush grid /Rubber Top/Perforated Modular Belt

19.05 mm Pitch Series 3935 Flat top/Flush grid /Rubber Top/Perforated Modular Belt

*With bottom lock pin design for easy assemble.
*Modular Chain molded in Low Friction (LF)material.
*Underside design and small pitch allow the belt to run smoothly
around nosebars.
*Super light design for packing machine with small sprocket
*Exclusive desian, with professional matching wear strips and quard rails
providing customers with lightweight desian and more price-competitive design
*Food approved materials available
Inquiry
More Details

19.05 mm Pitch Series 3935 Flat top/Flush grid /Rubber Top/Perforated Modular Belt

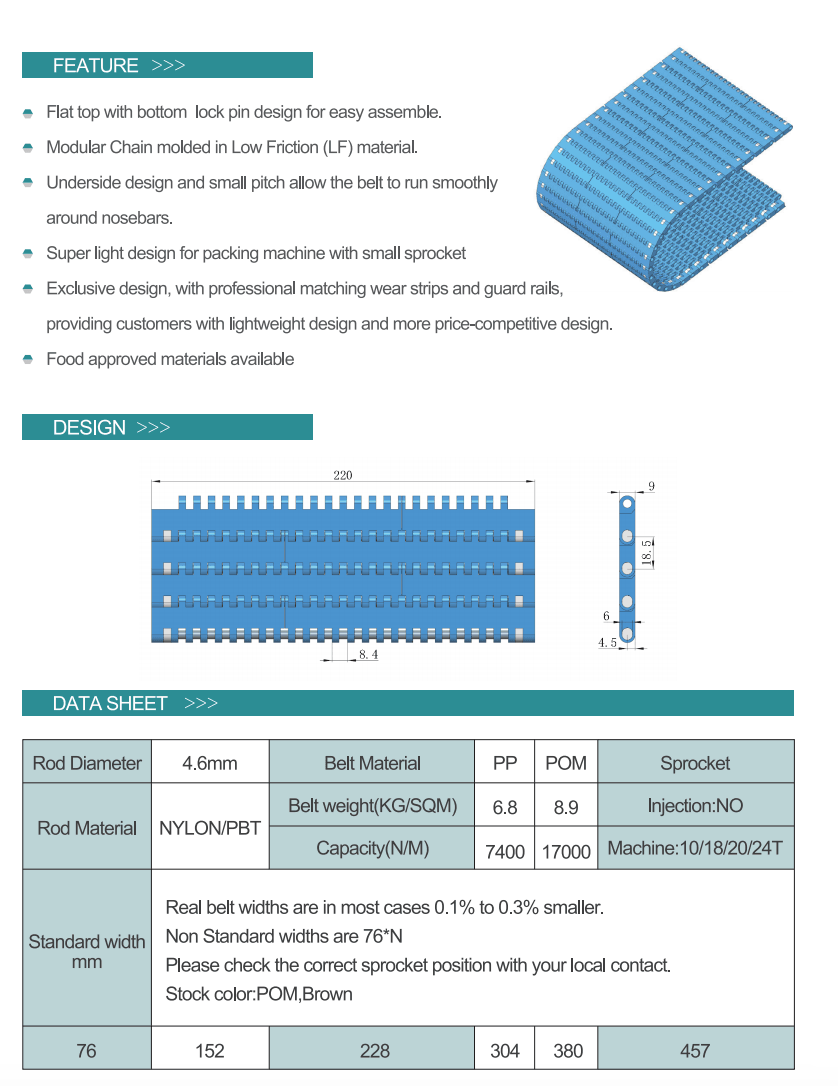

5935 series modular belt:

0.75"(19.05mm) pitch 0.35"(9mm) thickness, It is suitable for clean/corrosion-resistant conveying scenarios of light to medium-weight materials. Leveraging its modular adjustable specifications (width/height) and the properties of POM/PP materials, its typical applications are concentrated in the following fields:

Food and Beverage Industry: Conveying finished/semi-finished products such as biscuits and bottled beverages. It is adaptable to cleaning and medium-temperature environments and prevents material residue.
Pharmaceutical and Health Product Industry: Conveying capsules and small medical devices. It meets the requirements of clean workshops and releases no harmful substances.

Daily Chemical and Cosmetics Industry: Conveying skincare raw materials, lipsticks, etc. It is resistant to corrosion by surfactants and prevents scratches on products.


Electronics and Light Industry: Conveying precision parts such as resistors and mobile phone accessories. The lightweight design and low-height models prevent tipping.

Logistics and Warehousing Industry: Sorting small parcels and transferring parts. It has strong adaptability to different widths and low maintenance costs.

Other Scenarios: Conveying granular feed and water treatment filter media. It is wear-resistant and moisture-resistant.
