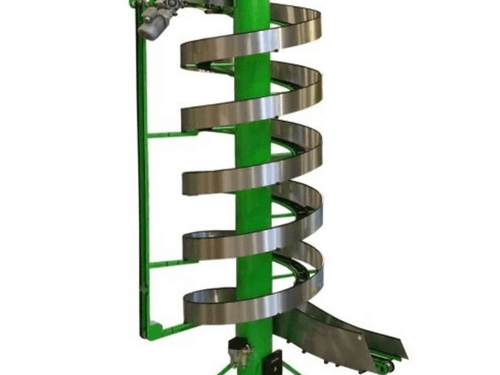

Chains spiral conveyor systems for transporting heavy and large items in industrial settings
*High Load Capacity and Stable Operation
*Space Optimization and Flexible Layout
*Low Noise and Low Maintenance
*Versatile Applications Across Industries
*Space Optimization and Flexible Layout
*Low Noise and Low Maintenance
*Versatile Applications Across Industries
More Details
- Chain Width Range: 100 mm (4 inches). This indicates the width of the chain used in the conveyor system.
- Nominal Clear Product Width: 300 mm (12 inches), 400 mm (16 inches), and 600 mm (24 inches). These are the standard widths that the conveyor can handle, ensuring that products of these sizes can be transported without issues.
- Multi-belt: Not applicable (n.a.). This suggests that the conveyor system does not use multiple belts in its design.
- Load Range: Up to 35 kg/m (23.5 lb/ft). This means the conveyor can handle a maximum load of 35 kilograms per meter of belt length, which translates to 23.5 pounds per foot.
- Speed Range: Up to 60 m/min (200 feet per minute). The conveyor can operate at speeds up to 60 meters per minute, which is equivalent to 200 feet per minute.
- Elevation: Virtually unlimited, commonly per drive system 15 m (50 feet). While the theoretical elevation is unlimited, typical setups for a single drive system can handle up to 15 meters (50 feet) of elevation.
- Belt Length: Up to 60 m (200 feet) per drive system. This is the maximum length of the conveyor belt that a single drive system can manage.
